Home Refrigeration Machinery Industrial Chiller Air Cooling

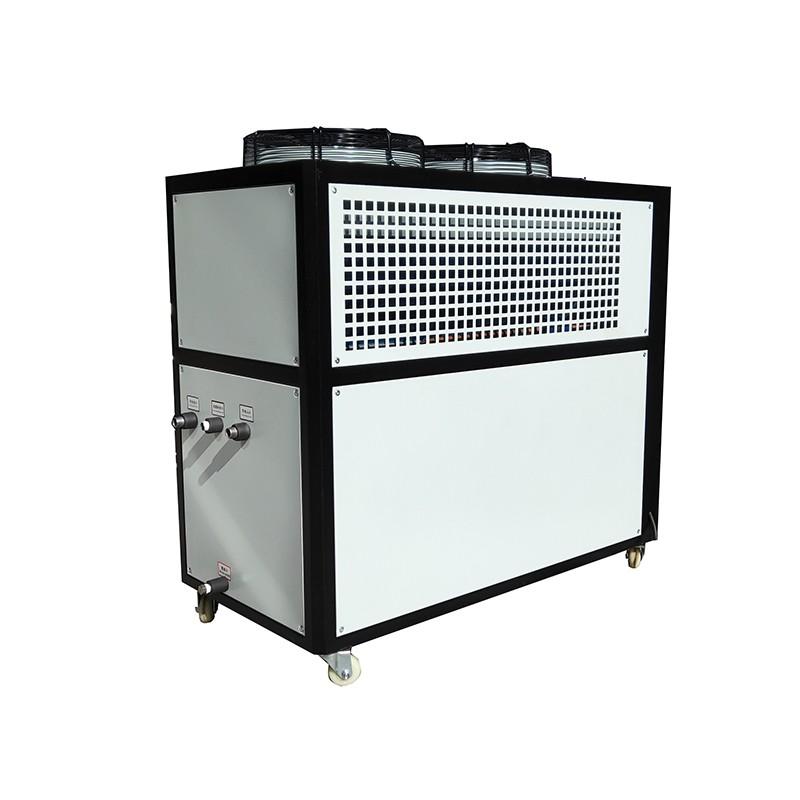

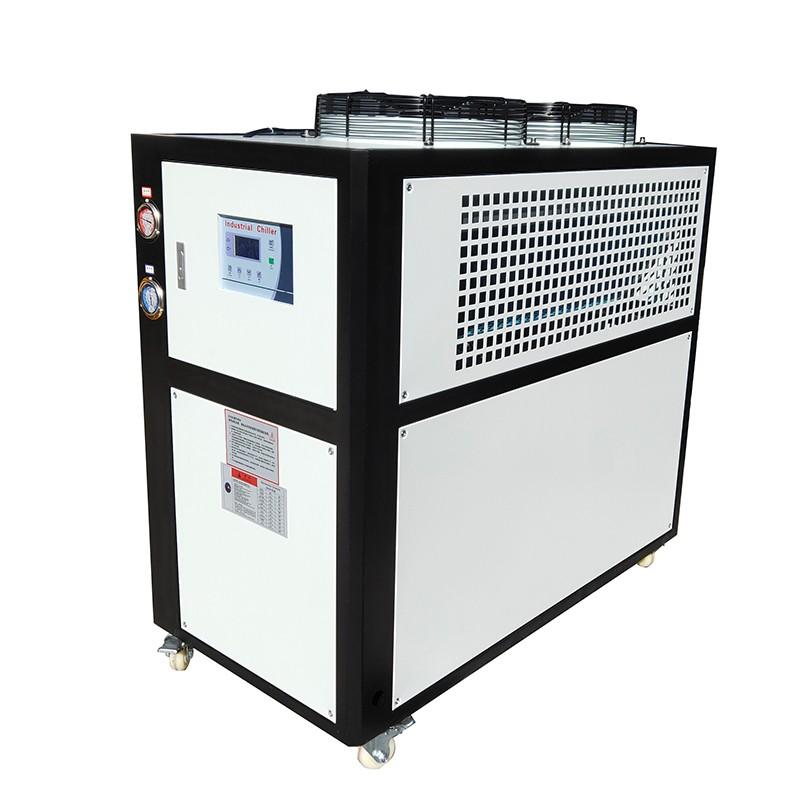

Excellent Cooling Chiller 5HP Injection Plastic Chiller 5Ton Air Cooled Industrial Water Chiller for Sale

Excellent Cooling Chiller 5HP Injection Plastic Chiller 5Ton Air Cooled Industrial Water Chiller for Sale

The air-cooled water chiller uses air as the cooling medium and dissipates the heat in the condenser to the surrounding air through fans. The refrigerant circulates in the unit and realizes the cooling of water through processes such as compression, condensation, throttling, and evaporation. The cooled water can be used in various industrial production processes, air conditioning systems of commercial buildings, or other occasions that require cooling.

  • Brand:

    Dongguan Zillion
  • ItemNO:

    ZL-5FL
  • Order(MOQ):

    1
  • Payment:

    T/T
  • MarketPrice:

    $1800
  • price:

    $1280
  • ProductOrigin:

    China
  • Color:

    Black/ White
  • ShippingPort:

    Shekou Port, Shenzhen, China
  • LeadTime:

    7-14 working days
  • Weight:

    170kg
  • Size:

    1250×640×1250MM

Air Cooled Water Chiller Machine Paremeter



Model ZL-5FL
Cooling Capacity 14.15KW
Compressor Power 3.75KW
Pump Power 0.37KW
Water Tank Volume 65L
Machine Weigth 170KG
Machine Size 1250×640×1250MM





Machine Introduction

An air-cooled chiller is a device that uses air to cool the condenser to achieve refrigeration. It is widely used in industrial production and commercial buildings to provide cooling water or other cooling fluids.

The main components of an air-cooled chiller include a compressor, condenser, evaporator, and expansion valve. Its working principle involves the circulation of refrigerant, which absorbs heat in the evaporator, thereby cooling the water.

Working Principle:

The working principle of the air-cooled chiller is to use the compressor to compress the refrigerant into a high-temperature and high-pressure gas, and then the heat is dissipated to the air through the condenser, and the refrigerant becomes a high-pressure liquid.

After the pressure is reduced by the throttle valve, the refrigerant evaporates and absorbs heat in the evaporator, thereby cooling the circulating water.

Advantages:

1. **Easy Installation:** No need for cooling towers or complex piping systems.

2. **Low Maintenance Costs:** No need for water treatment systems, reducing maintenance workload.

3. **Wide Application:** Suitable for areas with scarce water resources or where cooling towers cannot be installed.

 Applications:

- Industrial manufacturing (plastics, electronics, food processing, etc.)

- Commercial buildings (office buildings, shopping malls, hotels, etc.)

- Medical facilities (hospitals, laboratories, etc.)



FAQ:

  1. Q: How is the product quality guaranteed?
    A: We have a strict quality control system and strictly check every link from raw material procurement to production and processing. At the same time, our products have undergone multiple quality inspections to ensure stable and reliable performance.
  2. Q: What does after-sales service include?
    A: Our after-sales service includes equipment repair, maintenance, technical support, etc. We promise to respond promptly and arrange technical personnel to carry out repairs as soon as possible after receiving customer reports.
  3. Q: Are there any preferential policies?
    A: We will provide corresponding preferential policies according to factors such as customer order volume and cooperation time. At the same time, we will also launch promotional activities from time to time to allow customers to purchase our products at more favorable prices.
  4. Q: Can products be customized?
    A: Yes, we can customize products according to customers' special needs. Customers can provide specific technical parameters and requirements, and we will provide customers with professional customization solutions.
  5. Q: What is the company's delivery time?
    A: Under normal circumstances, our delivery time is 7-14 working days. However, the specific delivery time will vary according to factors such as customer order quantity and product model. We will clarify the delivery time with the customer before signing the contract and do our best to deliver on time.



Why Choose Us:

1. High-quality products
Adopting advanced technology and high-quality materials, with reliable performance and long service life. And they are strictly quality-controlled to meet standards.

2. Professional services
The experienced team provides installation, maintenance, repair, technical support and training to ensure smooth operation of equipment.

3. Customized solutions
According to customers' unique needs, we provide customized refrigeration solutions to meet different budgets and requirements.

4. Price advantages
The price is competitive. We offer flexible payment methods and financing plans, providing value for money and saving costs.

5. Innovation and sustainability
Constantly innovating and improving, developing energy-saving and environmentally friendly sustainable refrigeration solutions and contributing to a green future.
