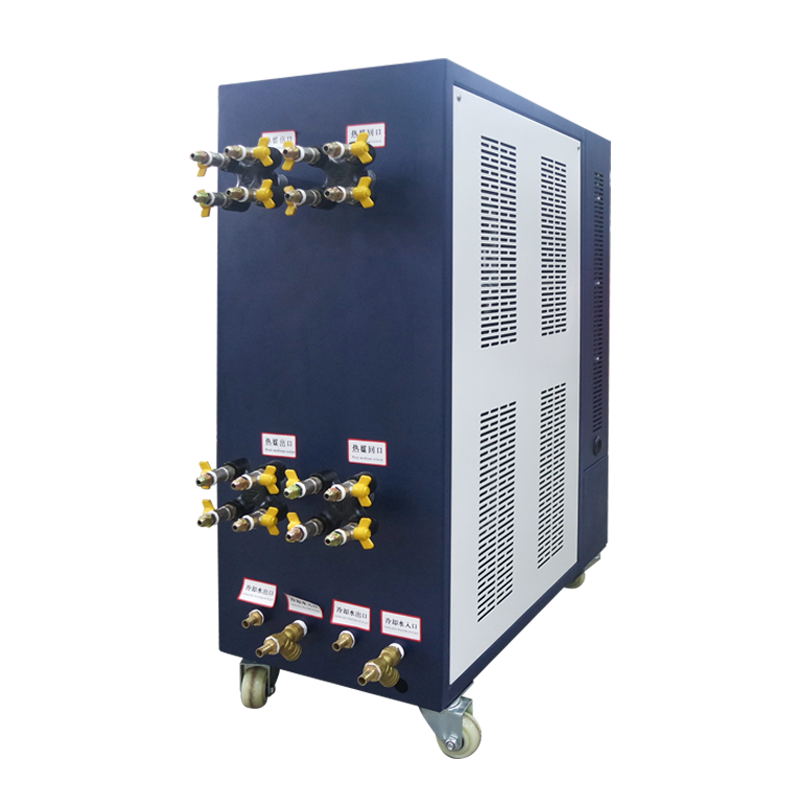

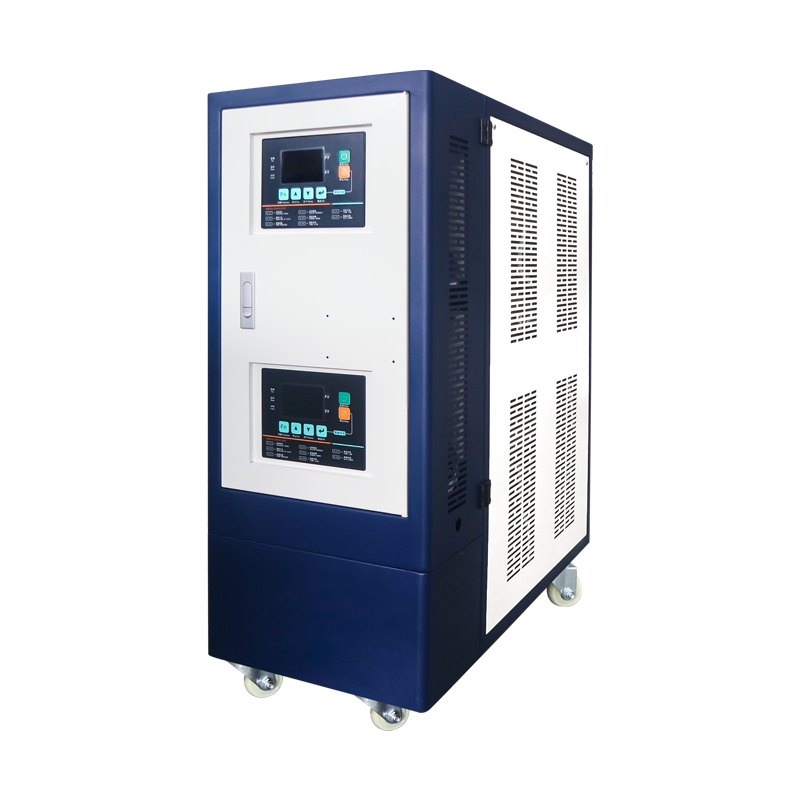

Dual-Temperature Integrated Mold Temperature Controller

ZL-MT-DUAL dual-temperature water and oil mold heater for multi-zone plastic injection molding with 180C + 350C heating
ZL-MT-DUAL dual-temperature water and oil mold heater for multi-zone plastic injection molding with 180C + 350C heating

Dual-Temperature Integrated Mold Temperature Controller

Quick Specs: ZILLION dual-temperature integrated mold temperature controller with water+oil combination, CE certified. Best for multi-zone molding and complex plastic injection molding.

The dual-temperature integrated mold temperature controller is an advanced temperature control device specially designed for heating and cooling molds. It can simultaneously provide two different temperature control modes to meet the precise requirements of mold temperature in different process stages.

  • Brand:

    Dongguan Zillion

  • ItemNO:

    ZL-D6KW / 9KW / 12K

  • Order(MOQ):

    1

  • Payment:

    T/T

  • MarketPrice:

    $1500

  • price:

    $1300

  • ProductOrigin:

    The People's Republic of China

  • Color:

    Blue/Black/ White

  • ShippingPort:

    Shekou Port, Shenzhen, China

  • LeadTime：

    7-14 working days

  • Weight：

    53KG

  • Size:

    670*310*700mm
Inquiry now

Double Temperature Mold Temperature Controller Machine Paremeter



Model ZL-D6KW ZL-D9KW ZL-D12KW
Heating  Capacity 6KW*2 9KW*2 12KW*2
Pump Lift 30M 30M 40M
Pump Water Flow Rate 35L/min*2 35L/min*2 60L/min*2
Pump Power 0.375KW*2 0.375KW*2 0.75KW*2
Max Temperature Water： 120℃ Oil：180℃（Higher temperatures can be customized if needed.）
Mix Temperature Cooling water temperature: ±20 degrees Celsius

Machine parameters are subject to change without notice. If you want to know more, please contact us.



Machine Introduction

The dual-temperature integrated mold temperature machine is an advanced temperature control device. It combines heating and cooling functions and can accurately control the temperature of molds.



This mold temperature machine has high-efficiency performance. Through an intelligent control system, it can quickly respond to temperature changes and ensure that the mold always maintains a stable temperature in different production processes. Whether in injection molding, die casting or other industrial production fields, the dual-temperature integrated mold temperature machine can play an important role.



Its unique dual-temperature design enables the device to switch between different temperature ranges and meet the needs of various complex processes. At the same time, this equipment also has the characteristics of energy saving and environmental protection, which can reduce production costs and reduce the impact on the environment.



Working Principle:

  • Heating mode: The built-in heater heats the heat transfer medium. The heated medium is pumped to the equipment or mold for heat exchange. After that, it returns to be reheated. This cycle maintains a stable high temperature.
  • Cooling mode (if available): The cooling system starts when needed. For water-cooled ones, cooling water exchanges heat. For air-cooled ones, fans cool. The cooled medium absorbs heat in the equipment or mold. Temperature sensors monitor and the control system adjusts to ensure stable temperature within the set range, meeting diverse temperature needs.



Advantages：

  1. Dual-temperature control: Equipped with two independent temperature control circuits, which can be flexibly switched as needed.
  2. Precise temperature control: Adopting advanced temperature sensors and control systems to ensure high-precision control of mold temperature.
  3. High efficiency and energy saving: Optimized heating and cooling system design to improve energy utilization efficiency and reduce operating costs.
  4. Safe and reliable: Equipped with multiple safety protection devices to ensure the safe operation of the equipment.
  5. Easy to operate: Humanized operation interface, easy to set and adjust temperature parameters.
  6. Strong adaptability: Suitable for different types of molds and process requirements.



Applications：

  1. Plastic injection molding industry: Used to control the temperature of injection molds and improve the molding quality of plastic products.
  2. Die casting industry: Ensure that die casting molds work within an appropriate temperature range to improve the quality and production efficiency of castings.
  3. Rubber vulcanization industry: Precise control of the temperature of rubber molds to promote the vulcanization process of rubber.



FAQ:

  1. Q: How is the product quality guaranteed?
    A: We have a strict quality control system and strictly check every link from raw material procurement to production and processing. At the same time, our products have undergone multiple quality inspections to ensure stable and reliable performance.
  2. Q: What does after-sales service include?
    A: Our after-sales service includes equipment repair, maintenance, technical support, etc. We promise to respond promptly and arrange technical personnel to carry out repairs as soon as possible after receiving customer reports.
  3. Q: Are there any preferential policies?
    A: We will provide corresponding preferential policies according to factors such as customer order volume and cooperation time. At the same time, we will also launch promotional activities from time to time to allow customers to purchase our products at more favorable prices.
  4. Q: Can products be customized?
    A: Yes, we can customize products according to customers' special needs. Customers can provide specific technical parameters and requirements, and we will provide customers with professional customization solutions.
  5. Q: What is the company's delivery time?
    A: Under normal circumstances, our delivery time is 7-14 working days. However, the specific delivery time will vary according to factors such as customer order quantity and product model. We will clarify the delivery time with the customer before signing the contract and do our best to deliver on time.



Why Choose Us:

1. High-quality products
Adopting advanced technology and high-quality materials, with reliable performance and long service life. And they are strictly quality-controlled to meet standards.

2. Professional services
The experienced team provides installation, maintenance, repair, technical support and training to ensure smooth operation of equipment.

3. Customized solutions
According to customers' unique needs, we provide customized refrigeration solutions to meet different budgets and requirements.

4. Price advantages
The price is competitive. We offer flexible payment methods and financing plans, providing value for money and saving costs.

5. Innovation and sustainability
Constantly innovating and improving, developing energy-saving and environmentally friendly sustainable refrigeration solutions and contributing to a green future.
