Home Plastic Auxiliary Machinery Hopper Loader

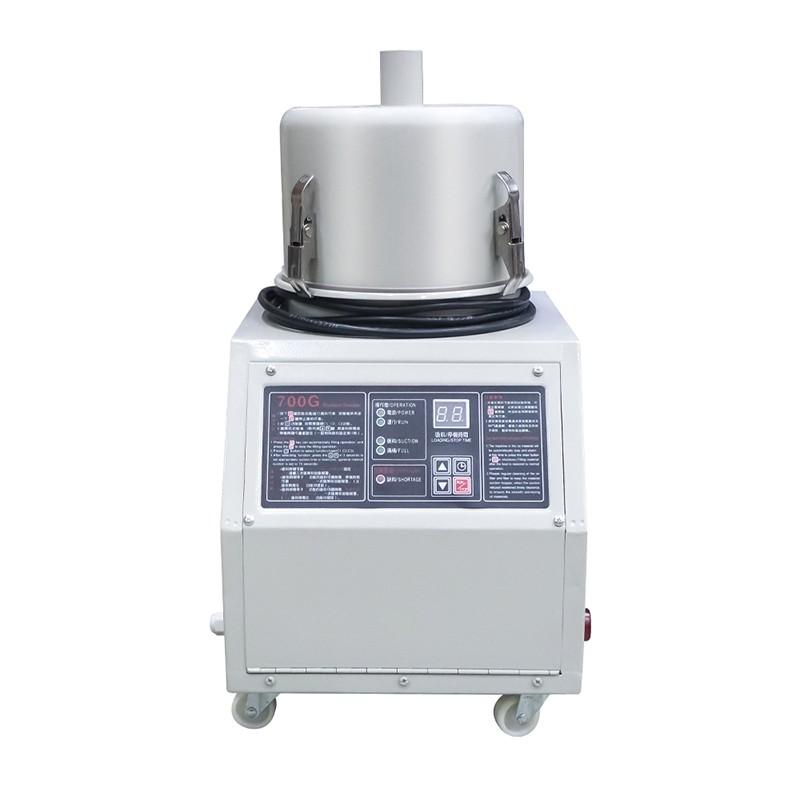

Injection Molding Machine Plastic Granules Vacuum Auto Loader

ZL-AL vacuum auto loader for plastic granules injection molding material feeding

Injection Molding Machine Plastic Granules Vacuum Auto Loader

Quick Specs: ZL-AL vacuum auto loader for plastic granules feeding, compatible with injection molding machines, CE certified. Best for industrial plastic processing and granule feeding.

  • Brand:

    Dongguan Zillion
  • ItemNO:

    ZLAL-700G
  • Order(MOQ):

    1
  • Payment:

    T/T
  • MarketPrice:

    $400
  • price:

    $300
  • ProductOrigin:

    China
  • Color:

    White/Grey
  • ShippingPort:

    Shekou Port, Shenzhen, China
  • LeadTime:

    7-14 working days
  • Weight:

    27KG
  • Size:

    365*295*540mm

Plastic Auoloader / Feeder Machine Paremeter



Model ZLAL-700G
Sunction Lift 4meter
Conveyance Capacity 400KG/H
Static Wind Pressure 1500mmH₂O
Hopper Capacity 7.5L
Machine Size 365*295*540mm
Net Weight 25KG

NOTE:The above parameters are for conventional models. Customization is supported.



Machine Introduction

The plastic feeding machine is a kind of equipment used for conveying plastic particles, powders and other materials. It can efficiently transport plastic raw materials from storage locations to processing equipment, providing a reliable material supply guarantee for the plastic production process.

Working Principle:

The autoloader operates by creating a vacuum that draws the material through a hose and into the loading chamber.

Once the material reaches the chamber, it is released into the processing machine.

This automated process ensures a continuous supply of material, reducing the need for manual handling and minimizing the risk of contamination.

Advantages:

  1. Efficient transportation: Adopting advanced transportation technology, it can quickly and stably transport plastic materials to the designated location and improve production efficiency.
  2. Multiple transportation methods: According to different material characteristics and production needs, different transportation methods such as screw transportation and belt transportation can be selected.
  3. Compact structure: The equipment has a small volume and occupies less space, which is convenient for installation and arrangement on the production line.
  4. Easy to operate: With a high degree of automation, it is simple and convenient to operate and reduces labor operation costs.
  5. High reliability: Adopting high-quality materials and advanced manufacturing processes to ensure the stability and reliability of the equipment.



Applications:

  1. Plastic product manufacturing enterprises: Used to transport plastic raw materials to processing equipment such as injection molding machines and extruders.
  2. Plastic recycling industry: Transport recycled plastic materials to crushing equipment, granulation equipment, etc. for reprocessing.
  3. Chemical industry: In the plastic chemical production process, it is used to transport plastic raw materials and semi-finished products.

.

FAQ:

  1. Q: How is the product quality guaranteed?
    A: We have a strict quality control system and strictly check every link from raw material procurement to production and processing. At the same time, our products have undergone multiple quality inspections to ensure stable and reliable performance.
  2. Q: What does after-sales service include?
    A: Our after-sales service includes equipment repair, maintenance, technical support, etc. We promise to respond promptly and arrange technical personnel to carry out repairs as soon as possible after receiving customer reports.
  3. Q: Are there any preferential policies?
    A: We will provide corresponding preferential policies according to factors such as customer order volume and cooperation time. At the same time, we will also launch promotional activities from time to time to allow customers to purchase our products at more favorable prices.
  4. Q: Can products be customized?
    A: Yes, we can customize products according to customers' special needs. Customers can provide specific technical parameters and requirements, and we will provide customers with professional customization solutions.
  5. Q: What is the company's delivery time?
    A: Under normal circumstances, our delivery time is 7-14 working days. However, the specific delivery time will vary according to factors such as customer order quantity and product model. We will clarify the delivery time with the customer before signing the contract and do our best to deliver on time.



Why Choose Us:

1. High-quality products
Adopting advanced technology and high-quality materials, with reliable performance and long service life. And they are strictly quality-controlled to meet standards.

2. Professional services
The experienced team provides installation, maintenance, repair, technical support and training to ensure smooth operation of equipment.

3. Customized solutions
According to customers' unique needs, we provide customized refrigeration solutions to meet different budgets and requirements.

4. Price advantages
The price is competitive. We offer flexible payment methods and financing plans, providing value for money and saving costs.

5. Innovation and sustainability
Constantly innovating and improving, developing energy-saving and environmentally friendly sustainable refrigeration solutions and contributing to a green future.
