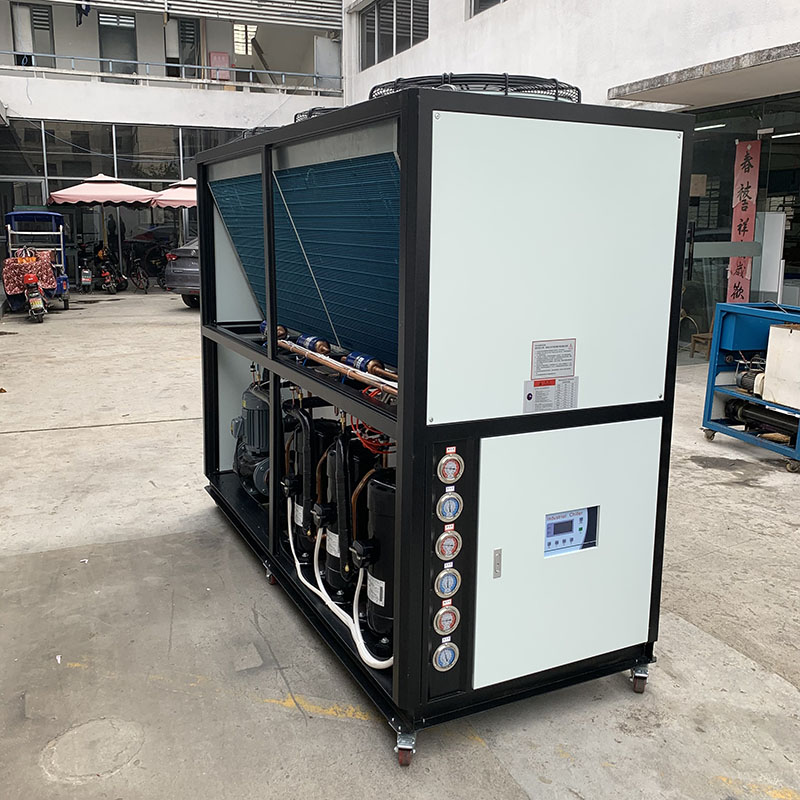

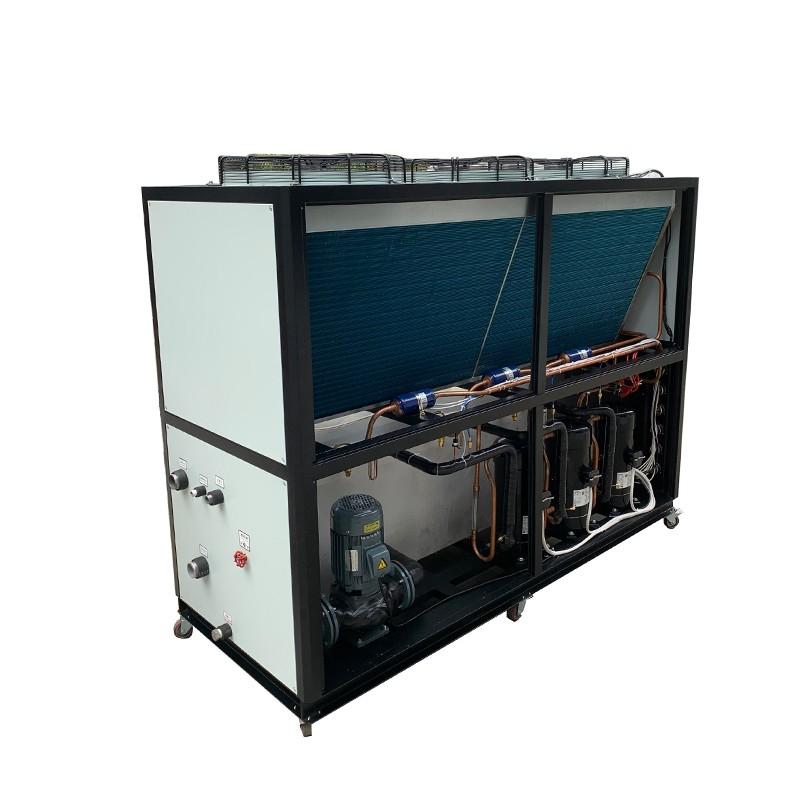

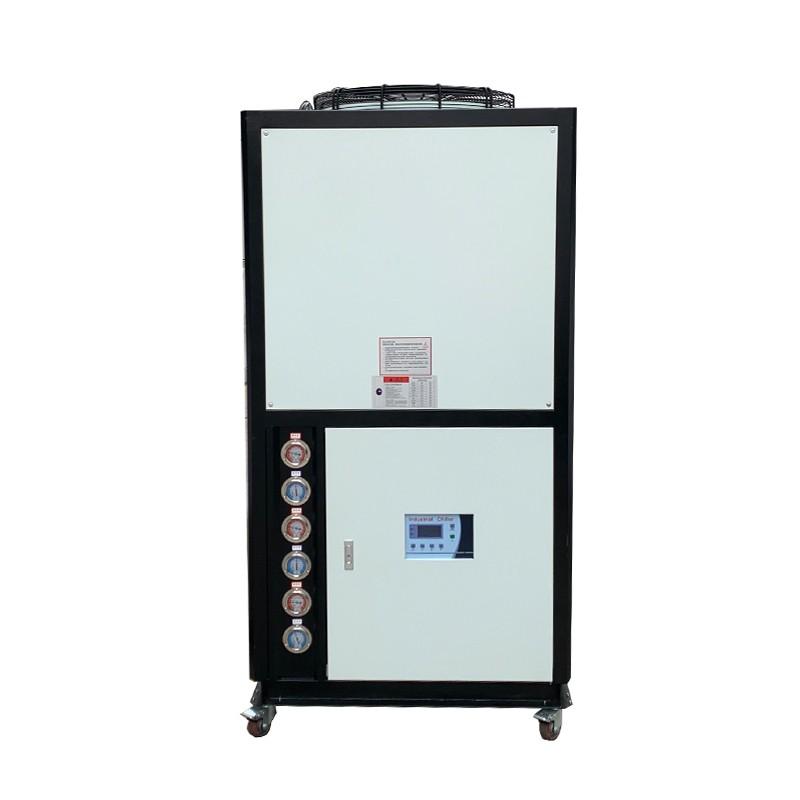

High Efficiency Air Cooled Water Chiller Machine with Scroll Compressor for Industrial Use
30HP Air-Cooled Scroll Water Chiller Machine Parameters
Model: ZL-30FL
Cooling Capacity: 76844kcal/h (89.4 KW)（about 25Ton）
Refrigerant: R22,(Support customization)
Refrigerant Control Type:External balanced thermal expansion valve
Compressor:29.8 kw,Fully enclosed scroll typ
Condenser: Air-cooled fin-type high-efficiency heat exchanger + low-noise external rotor fan, Cooling Air Flow 34000 m³/h, Fan Power 0.937kw*3
Evaporator: Tank coil type, Heat exchange tube material Purple copper, Tank Capacity： 390L
Safety Protection: Electrical (Over-current protection; Phase sequence/phase loss protection); Machine (Compressor overheat protection; High and low pressure protection; Over-temperature protection; Flow protection; Low level protection; Antifreeze protection)
Machine Weight :730KG, Dimensions ：2400*950*1930 mm (L*W*H)
-----------------------------
-----------------------------
Applications: Where Air-Cooled Scroll Chillers Excel
Choosing the Right Air-Cooled Scroll Water Chiller
When selecting an air-cooled scroll water chiller machine, consider factors like cooling capacity (measured in tons or kW), ambient temperature range, and compatibility with your existing systems. Look for models with advanced features such as variable speed drives, smart controls for remote monitoring, and compliance with environmental standards (e.g., low-GWP refrigerants).
Conclusion: A Smart Investment in Cooling Efficiency
The air-cooled scroll water chiller machine represents a perfect blend of innovation and practicality, offering businesses a cost-effective, low-maintenance solution for their cooling needs. Whether for industrial processes, commercial spaces, or specialized applications, this chiller delivers efficiency, reliability, and versatility—making it a smart choice for modern cooling requirements.
Quick Specs: ZL-AC2 energy-saving air cooled chiller with 2HP (6kW) motor, scroll compressor, CE certified. Best for automotive part manufacturing, small workshops, and low-load plastic cooling. The air-cooled water chiller uses air as the cooling medium and dissipates the heat in the condenser to the surrounding air through fans. The refrigerant circulates in the unit and realizes the cooling of water through processes such as compression, condensation, throttling, and evaporation. The cooled water can be used in various industrial production processes, air conditioning systems of commercial buildings, or other occasions that require cooling.
Quick Specs: ZL-AC3 eco-friendly air cooled chiller with 3HP (8.9kW) motor, scroll compressor, CE certified. Best for chilling equipment, small-scale plastic processing, and eco-conscious cooling. Compared with water-cooled water chillers, air-cooled water chillers do not consume a large amount of water resources and are more environmentally friendly. At the same time, its high-efficiency compressor and optimized system design can reduce energy consumption and improve energy utilization efficiency.
Quick Specs: ZL-AC2 scroll air cooled chiller with 2HP (6kW) motor, scroll compressor, compact design, CE certified. Best for small-scale industrial cooling, plastic processing, and lab applications. An air-cooled water chiller is a refrigeration device that cools water using air as the cooling medium. It consists of a compressor, condenser, evaporator, and expansion valve. The chiller works by circulating refrigerant through these components to remove heat from the water.
Quick Specs: ZL-AC10 industrial air cooled chiller with 10HP (31kW) motor, scroll compressor, CE certified. Best for chilling equipment, plastic processing, and industrial cooling applications. Air-cooled water chillers are widely used in various applications such as industrial processes, commercial buildings, and data centers. They offer several advantages, including easy installation, no need for a cooling tower or water source, and lower initial cost compared to water-cooled chillers.
Quick Specs: ZL-AC20 screw air cooled chiller with 20HP (62kW) motor, screw compressor, CE certified. Best for industrial recirculating cooling, plastic processing, and mid-to-large scale manufacturing.
Quick Specs: ZL-AC15 low-noise air cooled chiller with 15HP (46kW) motor, scroll compressor, CE certified. Best for plastic processing, noise-sensitive environments, and mid-scale industrial cooling.
Quick Specs: ZL-AC40 industrial air cooled chiller with 40HP (124kW) motor, screw compressor, heat exchange system, CE certified. Best for heat exchange applications, large-scale manufacturing, and HVAC central systems.
Quick Specs: ZL-AC60 heavy-duty industrial air cooled chiller with 60HP (188kW) motor, screw compressor, CE certified. Best for large-scale manufacturing, HVAC central systems, and high-load industrial cooling.
Our company's series of products are well-known in the plastic auxiliary machinery industry for their excellent performance and high cost performance.
