High Efficiency Plastic Hopper Dryer for Injection Molding Industry​

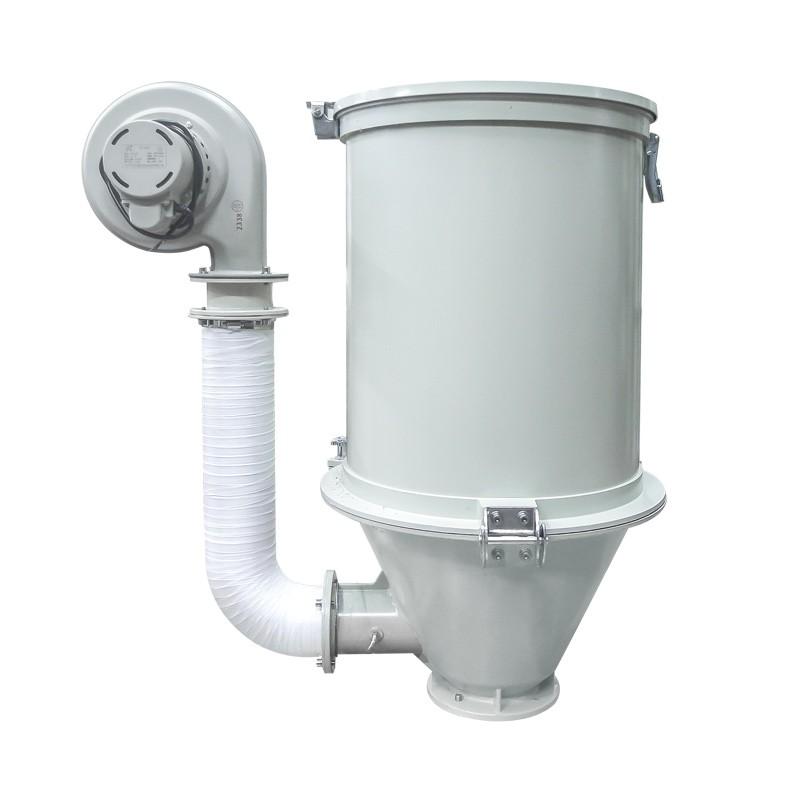

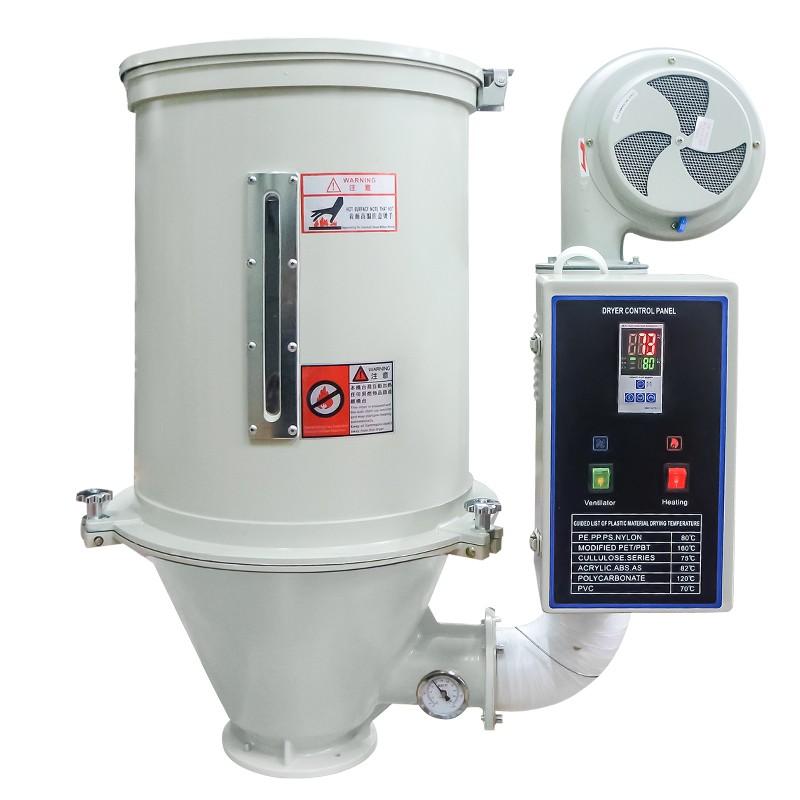

Quick Specs: ZL-HD vacuum feeder hopper dryer with 25-500KG multi-capacity, plastic material dehumidifying function, CE certified. Best for plastic processing and injection molding lines. The plastic hopper dryer is a device used for drying plastic particles. It is usually used in conjunction with plastic processing equipment such as injection molding machines and extruders. By heating and circulating air, the plastic hopper dryer can remove moisture from plastic particles and improve the processing performance and product quality of plastics.

Quick Specs: ZL-HD200 plastic dehumidifying hopper dryer with 200KG capacity, dehumidifying function, CE certified. Best for plastic injection molding and extrusion lines. A plastic dryer is a device used to remove moisture from plastic raw materials. During plastic processing, excessive moisture can affect the quality of plastic products, such as causing bubbles and surface defects. It uses methods like heating and ventilation to evaporate the water in plastic pellets, ensuring that the plastic can have good performance in subsequent molding processes, such as injection molding and extrusion.

Quick Specs: ZL-HD-Pro precision plastic hopper dryer with professional-grade drying function, multi-capacity, CE certified. Best for plastic processing and precision manufacturing.

Quick Specs: ZL-AL high-efficiency vacuum hopper loader with multi-capacity, optimized for plastic injection molding production lines, CE certified. Best for industrial plastic processing. The vacuum hopper loader is an efficient automatic material conveying device, using vacuum suction technology to achieve dust-free transfer of granular, powdery or pellet materials. Equipped with intelligent control and material level sensors, it enables automatic start-stop and steady feeding, reducing manual labor. With hygienic closed-loop design, stainless steel or wear-resistant components, it ensures safe and durable operation. Suitable for plastic processing, food, pharmaceutical and chemical industries, it integrates easily into production lines for cost-effective and high-quality conveying.​

Overview The ZL-25T is a 25-ton (88 kW) industrial FRP counter flow cooling tower purpose-built for plant manager operations applications. ZILLION engineered this 25-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 88 kW (25 refrigeration ton) Water flow rate: 19.51 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 200 CMM at 770 mm fan diameter Motor power: 0.75 kW at 380V 3-phase 50 Hz Head loss: 16 kPa at design flow Dry weight: 98 kg, operating weight: 500 kg Overall dimensions: H1900 x Dia1380 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications Mid-capacity 98 kg dry weight enables ground-level and rooftop installation. Operating weight 500 kg supports 24/7 continuous duty cycle for medium-to-large plant operations. 0.75 kW motor and 200 CMM airflow deliver reliable heat rejection for plastic injection molding and HVAC chiller condenser loops. Quiet 65 dB(A) operation suitable for indoor equipment rooms adjacent to manufacturing floor. Contact ZILLION Today Get a quote for the ZL-25T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Quick Specs: ZL-PC1400B industrial plastic crusher with 55kW motor, 2500kg/h output, SKD-11 blades, CE certified. Best for high-volume plastic recycling lines, large-scale PET bottle processing, and industrial scrap operations. ZL-PC1400B Wide Plastic Crusher — 55kW motor, 2500kg/h capacity, wide opening, CE certified. Industrial plastic recycling machine. SKD-11 blades, low noise, 1-year warranty. Buy now at factory price! ZILLION ZL-PC1400B Heavy Duty Plastic Crusher - 55kW Super Industrial Crusher for Major Commercial Plastic Recycling Operations For major commercial recyclers and large-scale industrial plastic waste processing facilities demanding maximum throughput: The ZL-PC1400B delivers 2000-2500kg/h with a 55kW motor, 42-piece SKD-11 rotary blade system, and an extra-wide 1420x800mm feed opening — the ultimate industrial-scale workhorse for maximum-throughput operations with extra-large format plastic waste materials. Technical Specs: Motor: 55kW / 380V / 50Hz (400V/380V/110V/220V/415V/440V available) Capacity: 2000-2500kg/h (tested with PET bottle flakes,

Overview The ZL-80T is a 80-ton (281.4 kW) industrial FRP counter flow cooling tower purpose-built for agriculture food processing applications. ZILLION engineered this 80-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 281.4 kW (80 refrigeration ton) Water flow rate: 62.6 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 450 CMM at 1180 mm fan diameter Motor power: 1.5 kW at 380V 3-phase 50 Hz Head loss: 18 kPa at design flow Dry weight: 260 kg, operating weight: 1280 kg Overall dimensions: H2320 x Dia2100 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications SS316L food-grade stainless steel upgrade option for large commercial HVAC industrial HTST pasteurization (72 to 32 deg C pre-cooling) and chiller condenser loop (4 deg C chilled water final cooling). 281.4 kW capacity supports 10,000 L/h milk processing lines. CE certified, FDA 21 CFR compliant materials. Suitable for brewery wort cooling, beverage production, and dairy processing operations. Contact ZILLION Today Get a quote for the ZL-80T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Overview The ZL-300T is a 300-ton (1055.1 kW) industrial FRP counter flow cooling tower purpose-built for cip pharmaceutical applications. ZILLION engineered this 300-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 1055.1 kW (300 refrigeration ton) Water flow rate: 234.0 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 2000 CMM at 2400 mm fan diameter Motor power: 7.5 kW at 380V 3-phase 50 Hz Head loss: 34 kPa at design flow Dry weight: 1760 kg, operating weight: 3930 kg Overall dimensions: H3650 x Dia4730 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications SS316L stainless steel upgrade option for sanitary tri-clamp connections. CIP cycle compatible at 80 deg C hot water sanitization per cGMP standards for biotech and pharmaceutical processes. 1055.1 kW heat rejection supports clean utility loops for Water-for-Injection and purified water systems at production scale. FDA 21 CFR and ASME BPE compliant for bioprocessing equipment. EHEDG hygienic design compliant. Pharma-grade documentation package included. Contact ZILLION Today Get a quote for the ZL-300T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.
