Plastic Processing Professional Hopper Dryer Precision Plastic Drying

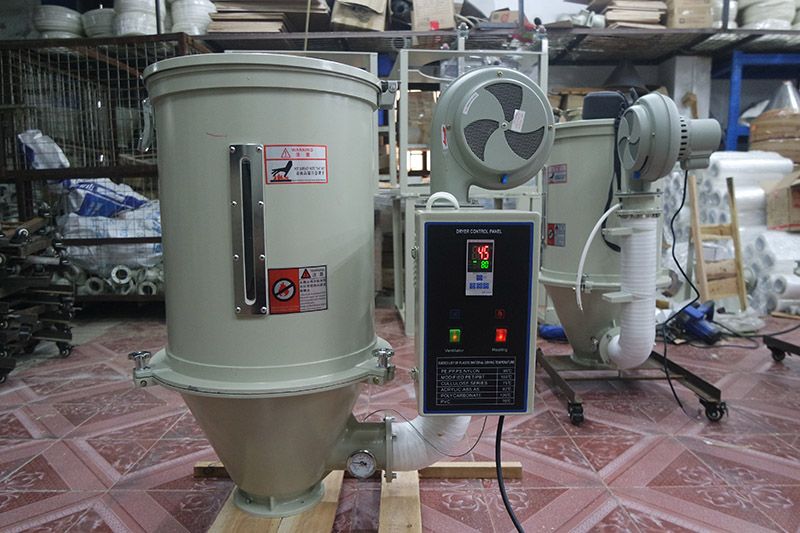

Quick Specs: ZL-HD vacuum feeder hopper dryer with 25-500KG multi-capacity, plastic material dehumidifying function, CE certified. Best for plastic processing and injection molding lines. The plastic hopper dryer is a device used for drying plastic particles. It is usually used in conjunction with plastic processing equipment such as injection molding machines and extruders. By heating and circulating air, the plastic hopper dryer can remove moisture from plastic particles and improve the processing performance and product quality of plastics.

Quick Specs: ZL-HD200 plastic dehumidifying hopper dryer with 200KG capacity, dehumidifying function, CE certified. Best for plastic injection molding and extrusion lines. A plastic dryer is a device used to remove moisture from plastic raw materials. During plastic processing, excessive moisture can affect the quality of plastic products, such as causing bubbles and surface defects. It uses methods like heating and ventilation to evaporate the water in plastic pellets, ensuring that the plastic can have good performance in subsequent molding processes, such as injection molding and extrusion.

Quick Specs: ZL-HD high-efficiency plastic hopper dryer with multi-capacity, optimized for injection molding, CE certified. Best for plastic processing industry and injection molding lines. Our Plastic Hopper Dryers are engineered to perfection, offering high - efficiency drying for a wide range of plastic materials. With advanced heating elements and intelligent control systems, they ensure rapid moisture removal, reducing production downtime and enhancing your overall productivity. Whether you're processing ABS, PP, nylon, or other engineering plastics, our dryers guarantee consistent drying results, improving the quality of your final products.

Overview The ZL-30T is a 30-ton (105.5 kW) industrial FRP counter flow cooling tower purpose-built for engineering specifications applications. ZILLION engineered this 30-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 105.5 kW (30 refrigeration ton) Water flow rate: 23.4 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 230 CMM at 770 mm fan diameter Motor power: 0.75 kW at 380V 3-phase 50 Hz Head loss: 16 kPa at design flow Dry weight: 116 kg, operating weight: 530 kg Overall dimensions: H2000 x Dia1650 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications 5 deg C wet-bulb approach at 27 deg C design condition for engineering specifications. 105.5 kW heat rejection at 30 ton (TR) capacity with 16 kPa head loss at 23.40 m3/h design flow. Fan curve 230 CMM at 770 mm blade diameter with 0.75 kW motor at 380V 3-phase 50 Hz. CTI STD-201 thermal performance certification available with Reynolds number analysis and selection methodology included with quotation package. Contact ZILLION Today Get a quote for the ZL-30T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Quick Specs: ZL-AL vacuum auto loader for plastic granules feeding, compatible with injection molding machines, CE certified. Best for industrial plastic processing and granule feeding.

Overview The ZL-25T is a 25-ton (88 kW) industrial FRP counter flow cooling tower purpose-built for plant manager operations applications. ZILLION engineered this 25-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 88 kW (25 refrigeration ton) Water flow rate: 19.51 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 200 CMM at 770 mm fan diameter Motor power: 0.75 kW at 380V 3-phase 50 Hz Head loss: 16 kPa at design flow Dry weight: 98 kg, operating weight: 500 kg Overall dimensions: H1900 x Dia1380 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications Mid-capacity 98 kg dry weight enables ground-level and rooftop installation. Operating weight 500 kg supports 24/7 continuous duty cycle for medium-to-large plant operations. 0.75 kW motor and 200 CMM airflow deliver reliable heat rejection for plastic injection molding and HVAC chiller condenser loops. Quiet 65 dB(A) operation suitable for indoor equipment rooms adjacent to manufacturing floor. Contact ZILLION Today Get a quote for the ZL-25T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Overview The ZL-350T is a 350-ton (1231.0 kW) industrial FRP counter flow cooling tower purpose-built for injection molding applications. ZILLION engineered this 350-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 1231.0 kW (350 refrigeration ton) Water flow rate: 273.2 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 2200 CMM at 2400 mm fan diameter Motor power: 7.5 kW at 380V 3-phase 50 Hz Head loss: 34 kPa at design flow Dry weight: 1800 kg, operating weight: 3790 kg Overall dimensions: H3650 x Dia4730 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications 273.2 m3/h water flow rate suits 800-1500 ton injection molding machines for plastic mold cooling circuits at production scale. 1231.0 kW heat rejection at 350 ton (TR) capacity for high-volume batch production lines. Cycle time consistency at 32 deg C leaving water improves part quality. Compact footprint suitable for plant installation with direct piping to chiller. Mold temperature stability plus-minus 1 deg C maintained. Contact ZILLION Today Get a quote for the ZL-350T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Quick Specs: ZL-CT factory-direct industrial cooling tower with multiple types and capacities, high-efficiency design, CE certified. Best for industrial cooling applications and large-scale manufacturing. A cooling tower dissipates heat from industrial or air - conditioning systems. Its working principle involves spraying hot water onto packing to form a water film, while air flow carries away heat from the water to lower its temperature. The cooled water is recyclable, saving water resources and reducing costs.​ There are various types, such as open and closed cooling towers. Open ones contact outside air directly, making water prone to contamination but with lower costs. Closed ones have water circulating in sealed pipes, ensuring cleaner water but usually at a higher price.​ Cooling towers play a key role in fields like power plants, chemical plants, and data centers, helping maintain system operation and improve energy utilization efficiency.​
