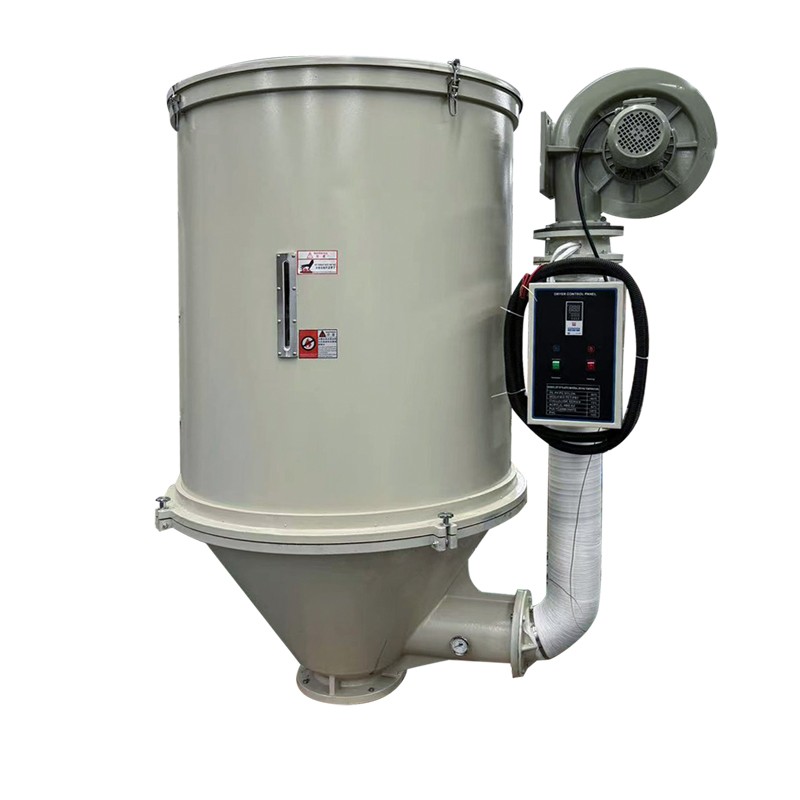

Plastic Dehumidifying Hopper Dryer 200KG

ZL-HD200 Plastic Dehumidifying Hopper Dryer 200KG
ZL-HD200 Plastic Dehumidifying Hopper Dryer 200KG

Plastic Dehumidifying Hopper Dryer 200KG

Quick Specs: ZL-HD200 plastic dehumidifying hopper dryer with 200KG capacity, dehumidifying function, CE certified. Best for plastic injection molding and extrusion lines.

A plastic dryer is a device used to remove moisture from plastic raw materials. During plastic processing, excessive moisture can affect the quality of plastic products, such as causing bubbles and surface defects. It uses methods like heating and ventilation to evaporate the water in plastic pellets, ensuring that the plastic can have good performance in subsequent molding processes, such as injection molding and extrusion.

  • Brand:

    Dongguan Zillion

  • ItemNO:

    ZL-100KG 150KG 200KG

  • Order(MOQ):

    1

  • Payment:

    EXW / CIF /FCA

  • MarketPrice:

    $1000

  • price:

    $400

  • PriceRange:

    400 - 700/$1

  • ProductOrigin:

    The People's Republic of China

  • Color:

    White/Grey

  • ShippingPort:

    Shekou Port, Shenzhen, China

  • LeadTime：

    7-14 working days
Inquiry now

Plastic Hopper Dryer Machine Paremeter



Model ZL-100KG ZL-150KG ZL-200KG
Heating  Power 6KW 9KW 12KW
Fan Power 215W 215W 320W
Volume 100KG 150KG 105KG
Size  1020*780*1150MM 1100*760*1050MM 1280*800*1350MM
Net Weight 66KG 78KG 105KG
Note The above dimensions and weight do not include the triangular bracket. If you need to use the machine independently, it is recommended to add a bracket.

Machine parameters are subject to change without notice. If you want to know more, please contact us.



Machine Introduction


Plastic dryers are devices used in the plastics processing industry to remove moisture from polymers before they are processed into finished products. The hopper of the dryer is usually made of stainless steel and has functions such as "hot air blowing down" and "cyclone exhaust", as well as a double-layer insulation barrel.



Working Principle:

The working principle of a plastic dryer is mainly through the hot air circulation method. The air blown by the drying fan becomes high-temperature dry air after being heated by the drying electric heater. Through the specific air duct design, the hot air is evenly dispersed in the insulation barrel to fully contact with the plastic particles. As the hot air circulates, the moisture in the plastic particles will gradually evaporate, thereby achieving the drying of the plastic particles.



Advantages：

  1. Improve product quality: Removing moisture from plastic raw materials can avoid quality problems such as bubbles, poor transparency and cracking in plastic products.
  2. Wide applicability: It is suitable for drying a variety of plastic materials. Different types of plastic dryers can meet different drying needs.
  3. Simple operation: The drying process is relatively simple and easy to operate and control.
  4. Improve production efficiency: It can quickly dry plastic particles, shorten the production cycle and improve production efficiency.



Applications：

  • Plastic products processing industry: Before the processing and production of plastic particles for daily plastic products and electrical appliances, the plastic particles need to be dried by a dryer to ensure the stability and appearance quality of the products.
  • Plastic recycling industry: Recycled plastics often contain moisture after being cleaned and crushed. After drying treatment, they can be processed and reused better, reducing waste of resources.
  • Food packaging industry: Dry plastic raw materials are required in the production process of food packaging. The plastic dryer can adjust parameters as required to make the plastic raw materials reach the drying degree required for production and packaging.
  • Medical device industry: Many medical devices are made of plastic, such as infusion tubes and syringes. The plastic dryer can remove moisture and impurities in plastic particles to ensure the purity and reliability of products.
  • Electronic industry: The parts of electronic products often use plastic materials and have high requirements for drying degree. The plastic dryer can reduce the moisture content in plastics and improve the performance of parts.
  • Automotive industry: Automobile interiors and parts use a large amount of plastic products. Dried plastic raw materials can better adapt to various process requirements in the automobile manufacturing process and improve the overall quality and durability of automobiles.

FAQ:

  1. Q: How is the product quality guaranteed?
    A: We have a strict quality control system and strictly check every link from raw material procurement to production and processing. At the same time, our products have undergone multiple quality inspections to ensure stable and reliable performance.
  2. Q: What does after-sales service include?
    A: Our after-sales service includes equipment repair, maintenance, technical support, etc. We promise to respond promptly and arrange technical personnel to carry out repairs as soon as possible after receiving customer reports.
  3. Q: Are there any preferential policies?
    A: We will provide corresponding preferential policies according to factors such as customer order volume and cooperation time. At the same time, we will also launch promotional activities from time to time to allow customers to purchase our products at more favorable prices.
  4. Q: Can products be customized?
    A: Yes, we can customize products according to customers' special needs. Customers can provide specific technical parameters and requirements, and we will provide customers with professional customization solutions.
  5. Q: What is the company's delivery time?
    A: Under normal circumstances, our delivery time is 7-14 working days. However, the specific delivery time will vary according to factors such as customer order quantity and product model. We will clarify the delivery time with the customer before signing the contract and do our best to deliver on time.



Why Choose Us:

1. High-quality products
Adopting advanced technology and high-quality materials, with reliable performance and long service life. And they are strictly quality-controlled to meet standards.

2. Professional services
The experienced team provides installation, maintenance, repair, technical support and training to ensure smooth operation of equipment.

3. Customized solutions
According to customers' unique needs, we provide customized refrigeration solutions to meet different budgets and requirements.

4. Price advantages
The price is competitive. We offer flexible payment methods and financing plans, providing value for money and saving costs.

5. Innovation and sustainability
Constantly innovating and improving, developing energy-saving and environmentally friendly sustainable refrigeration solutions and contributing to a green future.
