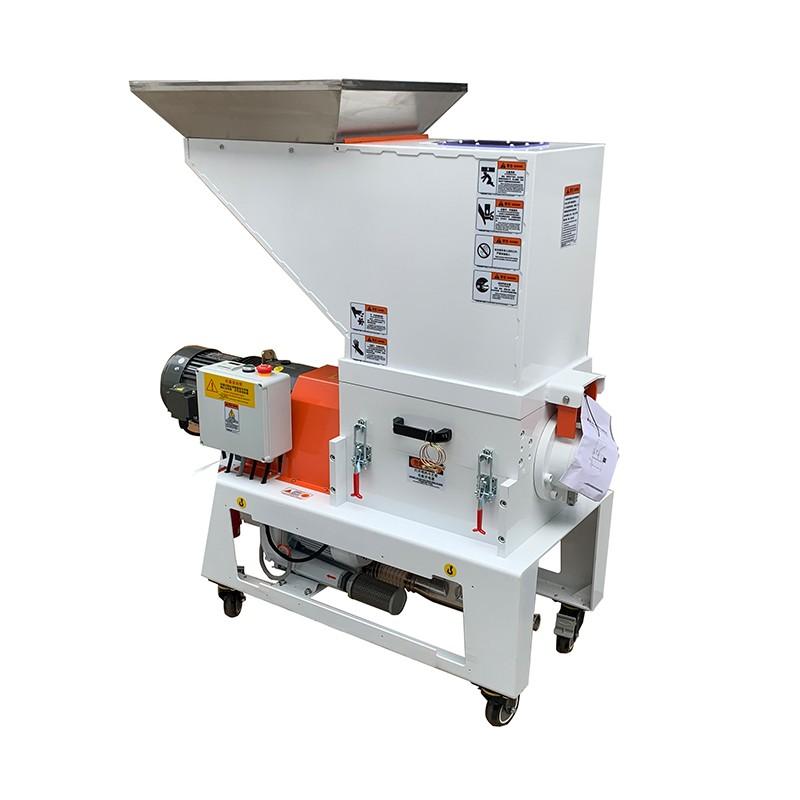

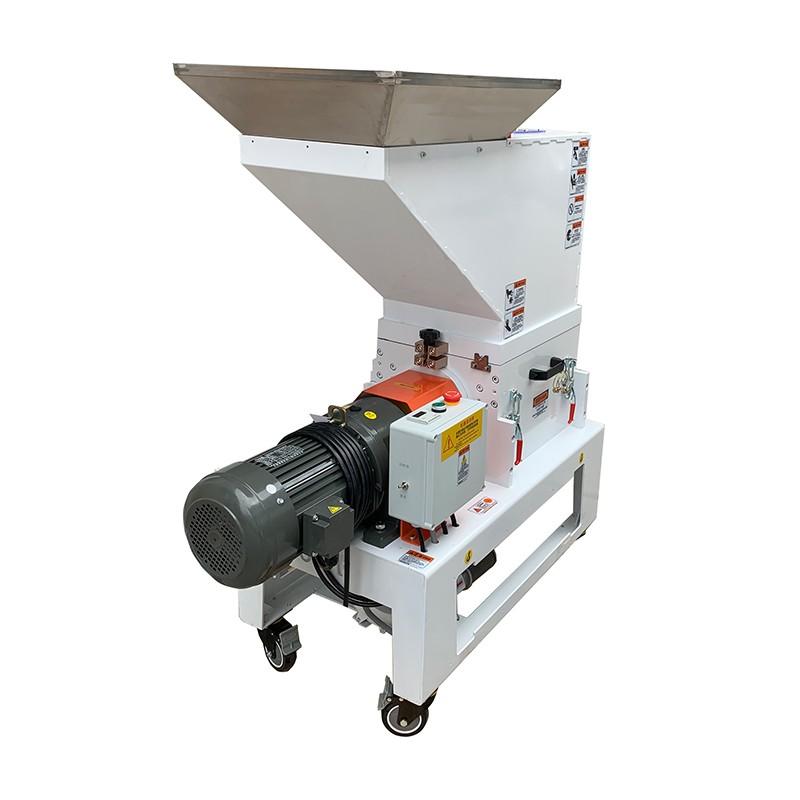

High Quality Slow Speed and Low Noise Crusher Grinder Pulverizer

High Quality Slow Speed and Low Noise Crusher Grinder Pulverizer

It can crush various plastics and rubbers, such as plastic profiles, tubes, rods, filaments, films, waste rubber products, defective products and sprues generated by injection molding machines, etc.
It is often used beside injection molding machines to immediately crush the sprues and waste materials generated during injection molding. A blower or suction machine can be installed to achieve immediate recycling and reuse of the crushed materials. It can also be used alone for low-output crushing requirements. It has a very low noise level.
  • Brand:

    Dongguan Zillion
  • ItemNO:

    ZL-MS01
  • Order(MOQ):

    1
  • Payment:

    T/T
  • MarketPrice:

    $1900
  • price:

    $1400
  • ProductOrigin:

    The People's Republic of China
  • Color:

    Grey/ White
  • ShippingPort:

    Shekou Port, Shenzhen, China
  • LeadTime:

    7-14 working days
  • Weight:

    205KG
  • Size:

    900*450*1200mm

Slow-Speed Side Crusher  Machine Paremeter



Model ZL-MS01 ZL-MS02 ZL-MS03
Inlet Hopper Size 482*348mm 480*480mm 590*480mm
Crushing Chamber Size 250*240mm 315*315mm 420*315mm
Crsuhing Capacity 12-20kg/h 20-25kg/h 25-30kg/h
Motor Power 1.1KW 1.5KW 2.2KW
Discharge Size 5-6mm(The discharge size will be different after crushing materials of different materials.)
Rotation Speed

23r/min

Machine parameters are subject to change without notice. If you want to know more, please contact us.

Machine Introduction

The slow-speed in-line crusher is a device used for processing materials such as plastics in industrial production. It is usually installed next to the production equipment and can promptly crush the scraps and defective products generated during the production process for recycling or reducing the volume of waste.


Working Principle:

  • The slow-speed in-line crusher drives the crushing cutters to rotate through the motor. When the material is put into the crusher, the cutters cut, tear and crush the material at a relatively slow speed. Slow operation helps to reduce the heating of the material during the crushing process and avoid performance changes of materials such as plastics due to overheating. At the same time, the special crushing chamber design and cutter arrangement can ensure that the material is fully crushed into uniform particle sizes.

Advantages:

  1. In-line installation: Save space and be convenient for use with production equipment.
  2. Slow-speed operation: Reduce material heating and protect material properties.
  3. Efficient crushing: Can quickly crush materials into the required particle sizes.
  4. Low noise: Less noise during operation, improving the working environment.
  5. Easy to operate and maintain: Simple structure, convenient operation and low maintenance cost.

Applications:

  1. Plastic products industry: Used for crushing scraps and defective products in plastic injection molding, extrusion and other production processes.
  2. Rubber products industry: Process waste in rubber product production.
  3. Electronic and electrical industry: Crush waste such as plastic casings of electronic and electrical products.



FAQ:

  1. Q: How is the product quality guaranteed?
    A: We have a strict quality control system and strictly check every link from raw material procurement to production and processing. At the same time, our products have undergone multiple quality inspections to ensure stable and reliable performance.
  2. Q: What does after-sales service include?
    A: Our after-sales service includes equipment repair, maintenance, technical support, etc. We promise to respond promptly and arrange technical personnel to carry out repairs as soon as possible after receiving customer reports.
  3. Q: Are there any preferential policies?
    A: We will provide corresponding preferential policies according to factors such as customer order volume and cooperation time. At the same time, we will also launch promotional activities from time to time to allow customers to purchase our products at more favorable prices.
  4. Q: Can products be customized?
    A: Yes, we can customize products according to customers' special needs. Customers can provide specific technical parameters and requirements, and we will provide customers with professional customization solutions.
  5. Q: What is the company's delivery time?
    A: Under normal circumstances, our delivery time is 7-14 working days. However, the specific delivery time will vary according to factors such as customer order quantity and product model. We will clarify the delivery time with the customer before signing the contract and do our best to deliver on time.



Why Choose Us:

1. High-quality products
Adopting advanced technology and high-quality materials, with reliable performance and long service life. And they are strictly quality-controlled to meet standards.

2. Professional services
The experienced team provides installation, maintenance, repair, technical support and training to ensure smooth operation of equipment.

3. Customized solutions
According to customers' unique needs, we provide customized refrigeration solutions to meet different budgets and requirements.

4. Price advantages
The price is competitive. We offer flexible payment methods and financing plans, providing value for money and saving costs.

5. Innovation and sustainability
Constantly innovating and improving, developing energy-saving and environmentally friendly sustainable refrigeration solutions and contributing to a green future.




Send A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
