Home Refrigeration Machinery Cooling Tower Series

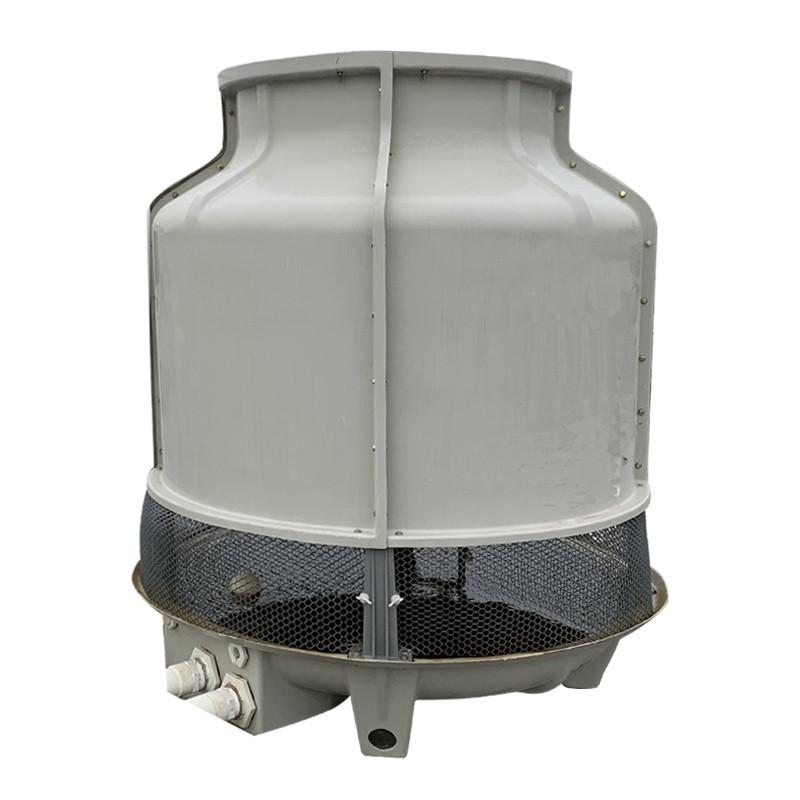

Industrial Fiberglass FRP GRP Counter Flow Cooling Tower Price Round FRP Cooling Tower 40T

ZL-CT40 Industrial Round Cooling Tower 40T FRP

Industrial Fiberglass FRP GRP Counter Flow Cooling Tower Price Round FRP Cooling Tower 40T

Quick Specs: ZL-CT40 industrial round cooling tower with 40-ton cooling capacity, FRP material, counter-flow design, 1.5kW fan, CE certified. Best for industrial chiller systems and mid-scale manufacturing.

The water cooling tower is a device used for cooling circulating water. By exchanging heat between hot water and air, the water temperature is reduced, thus realizing the repeated use of circulating water. Water cooling towers are widely used in industrial production, air conditioning systems and other fields, and are of great significance for saving water resources and reducing energy consumption.



  • Brand:

    Dongguan Zillion
  • ItemNO:

    ZL-40T
  • Order(MOQ):

    1
  • Payment:

    T/T
  • MarketPrice:

    $600
  • price:

    $499
  • ProductOrigin:

    China
  • Color:

    Grey/Yellow
  • ShippingPort:

    Shekou Port, Shenzhen, China
  • LeadTime:

    7-14 working days
  • Weight:

    130KG
  • Size:

    High:1970mm Diameter:1650mm

Water Cooling Tower Machine Paremeter



Model ZL-40T
Water Flow 31.21m3/h
Motot Power 0.37kw
Headloss 16kpa
Air Flow 280cmm
Machine Size High:1970mm Diameter:1650mm
Net Weight 130KG

NOTE:The above are the parameters of conventional circular cooling towers. There are also high-temperature types and directional cooling towers that can be customized. For detailed details, please contact us.



Machine Introduction

Cooling tower is a specialized heat exchanger in which air and water are brought into direct contact with each other to reduce the temperature of the water. When this happens, a small volume of water evaporates, reducing the temperature of the water being circulated through the tower.

 Cooling towers are used in various industrial processes, HVAC systems, and power plants to remove heat from circulating water. The cooled water is then recirculated back into the system to absorb more heat.

Working Principle:

Cooling towers operate on the principle of evaporative cooling. Warm water from the system enters the cooling tower and is distributed over a large surface area.

Air is drawn through the tower, either by natural convection or mechanical means (fans), causing a portion of the water to evaporate.

The evaporation process absorbs heat, cooling the remaining water, which is then collected and recirculated back into the system.

Advantages:

  1. Efficient cooling: Adopting advanced cooling technology, it can quickly reduce the water temperature and improve the cooling efficiency.
  2. Energy-saving and environmentally friendly: Using air as the cooling medium, no additional energy consumption is required and it is environmentally friendly.
  3. Compact structure: It occupies a small area, is easy to install and is suitable for various places.
  4. Stable operation: The equipment operates reliably and has low maintenance costs.
  5. Strong adaptability: It can be customized according to different water temperatures, water volumes and environmental conditions.



Applications:

1.Power Generation**: Cooling the water used in steam turbines.

 2.Petrochemical and Chemical Plants**: Removing heat from various processes.

 3.HVAC Systems**: Cooling the water in large commercial and residential buildings.

4.Manufacturing**: Cooling water in processes like plastic injection molding, food processing, etc.



FAQ:

  1. Q: How is the product quality guaranteed?
    A: We have a strict quality control system and strictly check every link from raw material procurement to production and processing. At the same time, our products have undergone multiple quality inspections to ensure stable and reliable performance.
  2. Q: What does after-sales service include?
    A: Our after-sales service includes equipment repair, maintenance, technical support, etc. We promise to respond promptly and arrange technical personnel to carry out repairs as soon as possible after receiving customer reports.
  3. Q: Are there any preferential policies?
    A: We will provide corresponding preferential policies according to factors such as customer order volume and cooperation time. At the same time, we will also launch promotional activities from time to time to allow customers to purchase our products at more favorable prices.
  4. Q: Can products be customized?
    A: Yes, we can customize products according to customers' special needs. Customers can provide specific technical parameters and requirements, and we will provide customers with professional customization solutions.
  5. Q: What is the company's delivery time?
    A: Under normal circumstances, our delivery time is 7-14 working days. However, the specific delivery time will vary according to factors such as customer order quantity and product model. We will clarify the delivery time with the customer before signing the contract and do our best to deliver on time.



Why Choose Us:

1. High-quality products
Adopting advanced technology and high-quality materials, with reliable performance and long service life. And they are strictly quality-controlled to meet standards.

2. Professional services
The experienced team provides installation, maintenance, repair, technical support and training to ensure smooth operation of equipment.

3. Customized solutions
According to customers' unique needs, we provide customized refrigeration solutions to meet different budgets and requirements.

4. Price advantages
The price is competitive. We offer flexible payment methods and financing plans, providing value for money and saving costs.

5. Innovation and sustainability
Constantly innovating and improving, developing energy-saving and environmentally friendly sustainable refrigeration solutions and contributing to a green future.
